Perfect sound quality, without compromise

Our Products

ADMD audio products offer the highest quality sound and an exceptional experience,
blending cutting-edge technology with innovation seamlessly.

Wood samples

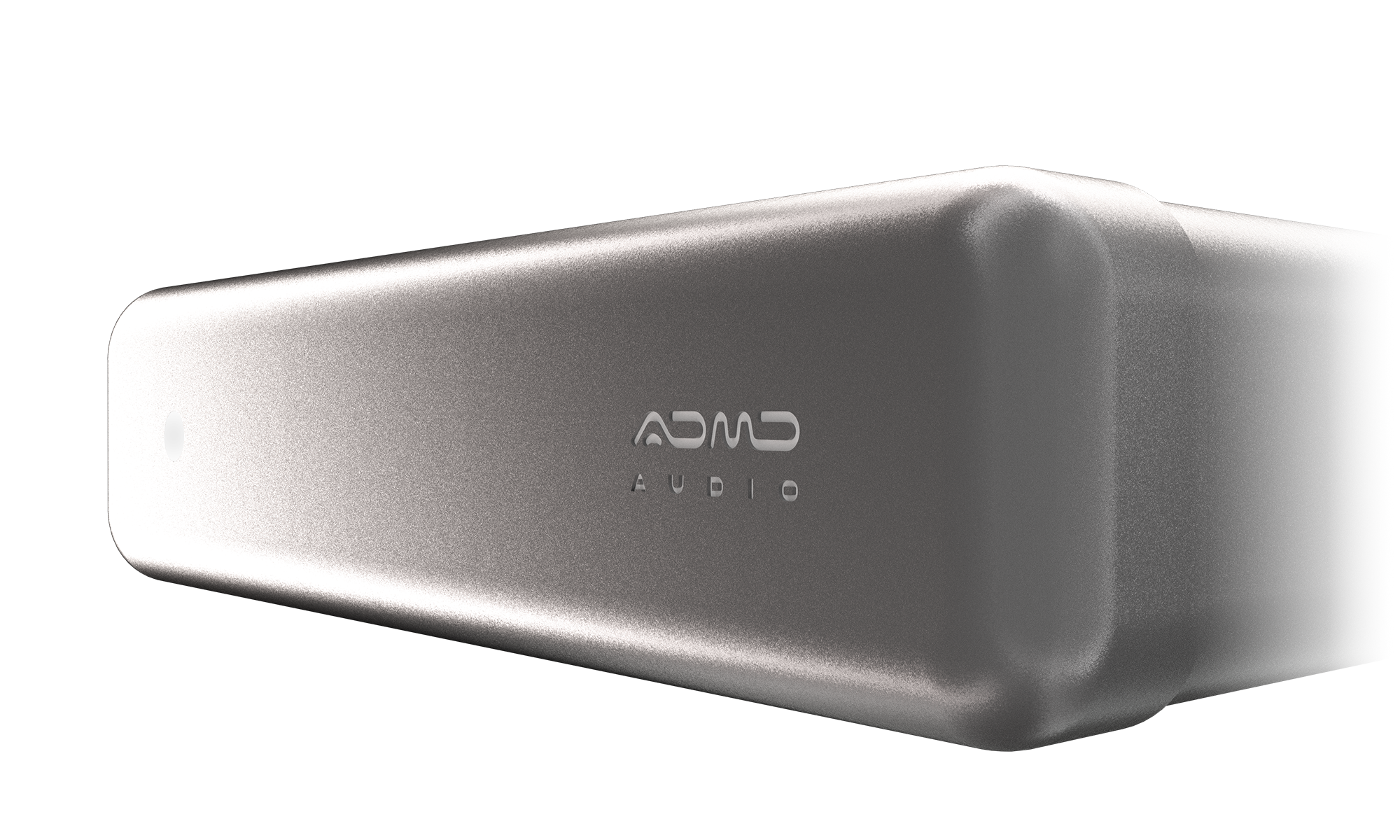

ADMD Audio ArcEdge DAC

Key Features

  • Quad R-2R ladder DA converter
  • USB interface with galvanic isolation
  • UP to 24 bit/384 kHz support
  • Precision anti-resonant composite case

Digital inputs:
SPDIF, AES/EBU, ADM Streamer USB Asynchronous mode USB 2.0 interface on B-type connector

Stereo analog outputs: RCA

Output level: unbalanced: 2.5 V

Output impedance: 100 Ω

Stereo analog outputs:XLR
Output level: balanced: 5 V

Output impedance: 300 Ω

Filter settings: linear, wintage like

L-R crosstalk better than -115 dB

Noise:
16 bit data better than -94 dB
24 bit data better than -118 dB

Power supply: 230 V/50 Hz
Power Comsumption: 40 W max.,
20 W average

Dimension: 450 mm x 360 mm x 100 mm

Weight: 14 KG

ADMD Audio line dac

Key Features

  • Dual R-2R ladder DA converter
  • USB interface with galvanic isolation
  • UP to 24 bit/192 kHz support
  • Precision anti-resonant composite case

Digital inputs:
SPDIF, AES/EBU, ADM Streamer USB Asynchronous mode

Stereo analog outputs: RCA

Output level: unbalanced: 2 V

Output impedance: 100 Ω
Filter settings: linear, wintage like

L-R crosstalk better than -112 dB

Noise:
16 bit data better than -92 dB
24 bit data better than -110 dB

Power supply: 230 V/50 Hz
Power Comsumption: 30 W max.,
10 W average

Dimension: 450 mm x 360 mm x 100 mm

Weight: 12 KG

Front panel samples

Wood samples

ADMD Audio line dac

Key Features

  • Dual R-2R ladder DA converter
  • USB interface with galvanic isolation
  • UP to 24 bit/192 kHz support
  • Precision anti-resonant composite case

Digital inputs:
SPDIF, AES/EBU, ADM Streamer USB Asynchronous mode

Stereo analog outputs: RCA

Output level: unbalanced: 2 V

Output impedance: 100 Ω
Filter settings: linear, wintage like

L-R crosstalk better than -112 dB

Noise:
16 bit data better than -92 dB
24 bit data better than -110 dB

Power supply: 230 V/50 Hz
Power Comsumption: 30 W max.,
10 W average

Dimension: 450 mm x 360 mm x 100 mm

Weight: 12 KG
