ADMD Audio Technologies
Perfect sound quality, without compromise

Our Products

ADMD audio products offer the highest quality sound and an exceptional experience,
blending cutting-edge technology with innovation seamlessly.

ADMD Audio line dac

Key Features

  • Dual R-2R ladder DA converter
  • USB interface with galvanic isolation
  • Up to 24 bit/192 kHz support
  • Precision anti-resonant composite case

Digital inputs:
Toslink (S/PDIF), ADM Streamer USB Asynchronous mode

Stereo analog outputs: XLR (balanced)

Output level: 2 V RMS

Output impedance: 100 Ω
Filter settings: linear, vintage like

L-R crosstalk better than -112 dB

Noise:
16 bit data better than -92 dB
24 bit data better than -110 dB

Power supply: 230 V/50 Hz
Power consumption: 30 W max.,
10 W average

Dimensions: 450 mm x 360 mm x 100 mm

Weight: 12 kg

Front panel samples

Wood samples

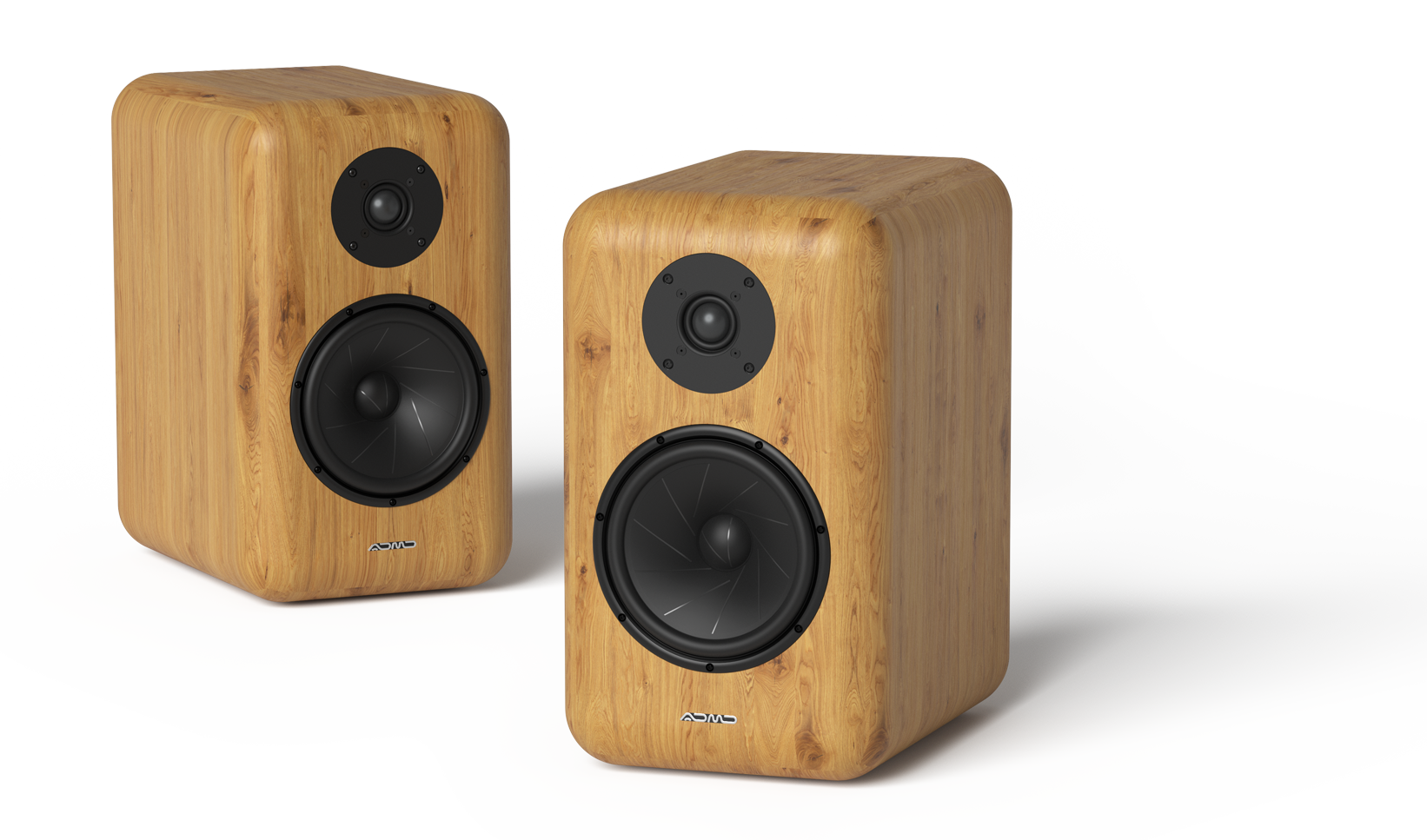

ADMD Audio Syntra System

Key Features

  • Part of the Syntra System: Line DAC + active speaker pair + cables + streaming source
  • Active bi-amplified speaker system, 60 W max per channel
  • Precision engineered cabinet — acoustic standing wave and damping optimized

XLR (balanced) input connection

Power supply: 230 V/50 Hz
Power consumption: 30 W max., 10 W average

Dimensions: 440 mm x 300 mm x 400 mm
Weight: 15 KG

ADMD Audio line dac

Key Features

  • Dual R-2R ladder DA converter
  • USB interface with galvanic isolation
  • UP to 24 bit/192 kHz support
  • Precision anti-resonant composite case

Digital inputs:
Toslink (S/PDIF), ADM Streamer USB Asynchronous mode

Stereo analog output: XLR (balanced)

Output level: 2 V RMS

Output impedance: 100 Ω
Filter settings: linear, vintage like

L-R crosstalk better than -112 dB

Noise:
16 bit data better than -92 dB
24 bit data better than -110 dB

Power supply: 230 V/50 Hz
Power consumption: 30 W max.,
10 W average

Dimensions: 450 mm x 360 mm x 100 mm

Weight: 18 KG
femmintak+alu+fa

The ADMD Line DAC front panel is available in your preferred finish: natural wood veneer, acrylic, or premium aluminium. Every version shares the same precision CNC-machined enclosure — only the expression is yours.

Product images are for illustration purposes only; the actual product may differ slightly in appearance.
